    Is Natural Gas Cheap and Abundant?

    There is a common myth within the investment community that the new horizontal drilling and hydraulic fracturing technologies opened the door for cheap and abundant natural gas (NYSEARCA:UNG) from shale. An NG supply glut since late 2011 pushed NG prices to decade lows, yet there was few sign that producers were cutting production in any significant way. This further supports the general consensus that at least some producers believe they could still make a profit at the record low gas prices.

    Can shale gas really be produced cheaply as some claims? This question is critically important to coal investors. At a price of $3.00/mmBtu or lower, NG competes with coal for electricity generation. If NG producers can make a profit producing shale gas at $3.00/mmBtu, then the future of coal looks dim.

    On the other hand, if NG producers can only make a profit at much higher gas prices, then the current depression in coal prices is only be temporary. This would mean there is a great opportunity to invest in the coal mining sector now.

    My study convinced me that shale gas is non-economical unless the gas price goes much higher. Let me speak with data and facts.

    SWN claims to the lowest cost shale gas producer in the industry. They operate mostly in Fayetteville, a shale play of low drilling cost due to shallow depth of the shale. Let's find out what is their real production cost of the shale gas.

    The cost boils down to two things:

    1. The lifetime cost of a shale well
    2. The EUR (Estimated Ultimate Recovery) per well.

    Estimating the Cost Per Well

    Some NG producers provide well cost numbers. Always take their numbers with a grain of salt and ask: What costs were excluded?

    SWN gave per well cost of $2.8M in 2011. They spent $2.2B in capital spending and completed 560 Fayetteville wells in 2011. $2.2B divided by 560 is $3.93M. So I think the real cost per well was $4M.

    In the bigger picture, the top 40 NG producers spent roughly $128B capital spending in 2011. There were 16,000 wells drilled. So the industry wide average drilling cost was about $8M per well.

    Modeling Fayetteville Well Declines

    All shale gas wells are in continuous decline once they were brought into production. So estimating EUR is a matter of trying to project the production decline.

    The industry uses the Arps formula to calculate EURs. Critics like Arthur Berman pointed out that the formula was never confirmed to be working in hydraulic fractured wells. The formula, when used with a high b-factor, often leads to grossly over-estimated EURs.

    A good example is Barnett Shale. Chesapeake Energy (NYSE:CHK) projected an EUR = 2.65 BCF using Arps formula. But after decades of development and 70% of the core area of Barnett already drilled, the cumulative production per well is only 0.663 BCF. That's only 1/4 of the projected EUR.

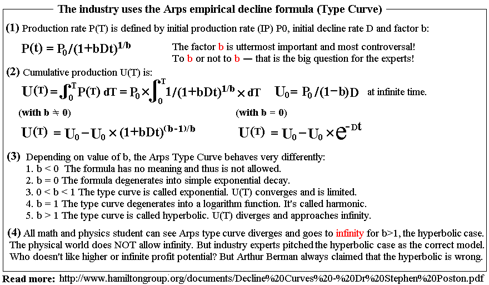

    Here is an explanation of the Arps formula:

    (click to enlarge)

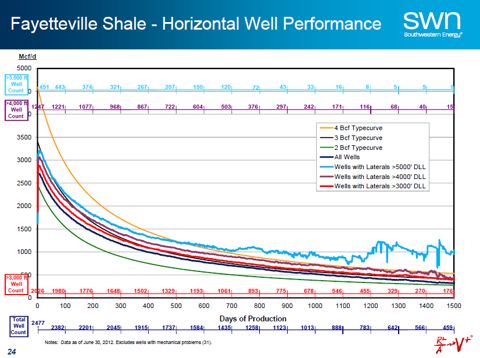

    How does Arps formula fit with Fayetteville well data? The SWN presentation contains this chart showing two type curves against actual production data:

    (click to enlarge)

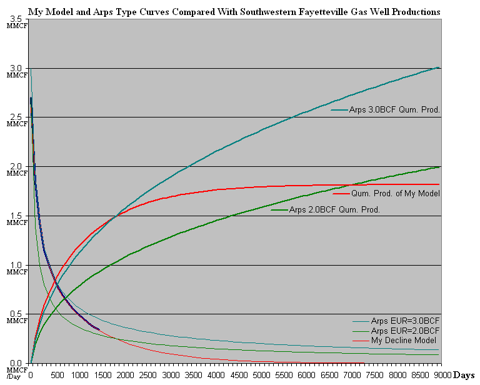

    It looks to me that the two type curves do not fit the production data very well at all. So I painstakingly extracted data from the chart, based on the thick blue curve for all wells. I plotted the data with the Arps curves and my own model as below:

    (click to enlarge)

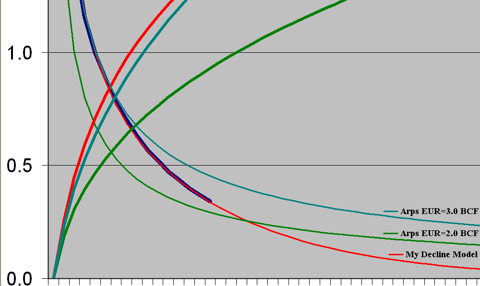

    Neither of the two Arps curves matched the well production data. But my model matched seamlessly. See the blow-up details:

    (click to enlarge)

    I discussed my decline model previously so I will not elaborate here. With an IP = 4.0 MMCF/Day, my model predicts an EUR of 1.75 BCF. So the EUR is rough 438 days or 1.2 years worth of IP production.

    Calculating the Real Production and EUR of Fayetteville Wells

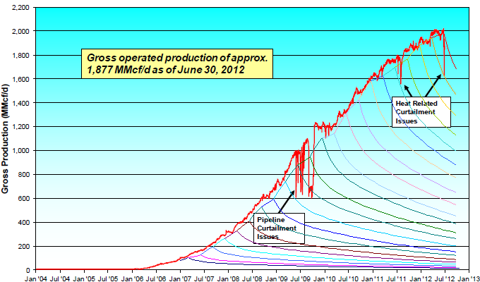

    Encouraged by my model's seamless match to real production data, I went further to calculate the projected total production, based on SWN's well completion statistics:

    Once again my result matches the actual production perfectly:

    (click to enlarge)

    My data model is validated! So let me calculate the EUR per well. Based on the SWN well chart, the average IP = 3.125 MMCF/day.

    As explained, EUR is approximately 438 days worth of production at IP rate. So EUR = 438 days * 3.125 MMCF/day = 1.37 BCF/well.

    This number is way below what SWN believe their EURs are. But my number is consistent with my last estimate. In previous article, I argued that 1.56 new wells a day is needed to maintain a flat 1.95 BCF/day production. So one well is worth 1.95 BCF/1.5 = 1.25 BCF.

    What is the Real Cost of Fayetteville Shale Gas?

    If my numbers are right, we are talking about each well costs $4M from drilling to completion. It can produce 1.37 BCF in its lifetime. The well cost of the gas is $4M/1.37BCF = $2.92/mmBtu.

    On top of that, SWN reported $1.13/mmBtu of finding and development cost, and $1.20/mmBtu of cash and operating cost.

    But SWN calculated its F&D cost based on inflated EUR. Adjusted to realistic EUR, I think the F&D cost should double to $2.26/mmBtu.

    The total comes to $2.92 + $1.20 + $2.26 = $6.38/mmBtu. That is the real cost of producing from the Fayetteville, the cheapest shale.

    Cheap Natural Gas is an Illusion

    I argued here and in the past that NG producers over-estimate the EUR of their wells. I am not the only critic. Even the USGS agrees. Please read this Huge Frack Surprise:

    Southwestern Energy and Chesapeake Energy claim average EUR's in the Fayetteville of 2.4-2.6 Bcf. The Powers Energy Investor, an industry publication stated:

    "To put into perspective how ridiculous Chesapeake's claims of 2.6 Bcf is, consider the following: of the company's 742 operated wells completed on the Fayetteville, only 66 have produced more than one Bcf and none have produced more than 1.7 Bcf. Chesapeake's average Fayetteville well has produced only 541 Mcf."

    The USGS confirms these numbers again with the average EUR for Fayetteville wells coming in at 1.1 Bcf, significantly lower than 2.4-2.6. (more at the link)

    The latest USGS report on shale EURs makes Arthur Berman look like an optimist! Here are the EUR numbers (in BCFs) from the report:

    Barnett - median 0.7, average 1.0
    Marcellus - median 0.8, average 1.158
    Fayetteville - Median 0.8, average 1.104
    Haynesville - Median 2.0, average 2.617

    These numbers are in huge contrast to the rosy numbers that NG producers have been selling to investors over the years.

    Wake up, people! The NG industry have spent more than half a trillion dollars over the decade to develop shale gas. So far they drilled 36,000 wells and produced 23,000 BCF of shale gas. That averages $13.9M per well and $21.74 per mmBtu of gas produced.

    Shale gas is neither cheap, nor abundant!

    Implications for investors

    My conclusion is that energy investors made the biggest mistake in energy investment history, by placing 75 times more investment capitals in the NG sector, than in the coal sector. This happened because of the wide-spread myth that natural gas has become cheap and abundant, and that we are seeing a paradigm shift away from coal. The myth is false. It is not supported by data and facts.

    This creates one of the biggest investment opportunity today. My advice is get out of the NG sector and get into the coal sector.

    If I have to pick an NG producer that I like, I have to pick one which has low debts and low costs. After looking at the data, I like SWN best. They have relative low debt load. They have the lowest cost in the industry. Gas price has got to go much higher. SWN should be among the first to benefit.

    But I would recommend coal stocks ahead of the NG producers:

    • Arch Coal Inc. (ACI)
    • Alpha Natural Resources (ANR)
    • James River Coal Company (JRCC)
    • Peabody Energy (BTU)
    • Cloud Peak Energy (NYSE:CLD)

    Disclosure: I am long ANR, ACI, JRCC, BTU.
