Semiconductor Industry - Basic Primer

What is a semiconductor?

  • It is a solid-state substance that is halfway between a conductor and an insulator.
    • When charged, the substance becomes conductive; when the charge is eliminated, it loses its conductive status. By combining conductive material, semiconductor material, and insulators in a pre-determined pattern, the movement of electricity can be precisely controlled.
      • A transistor is the basic element used in building semiconductor devices.
        • Acts as a on/off switch which opens and closes when electrically activated.
  • Semiconductor devices contain a transistor array, which is etched onto a rectangular piece of silicon called a die.
    • The die is encased in a plastic or ceramic package, and tiny wires called wire bonding are used to connect the input/output gates on the chip to the leads on the outside of the package.
  • Semi's come in two broad categories:
    • Discrete which have only one transistor
    • Integrated Circuits (ICs) which have multiple transistors (sometimes in millions)
  • Types
    • 5 Main (Broad) Product Types
      • Analog
        • Devices designed to process, convert, and create analog real world signals
      • System Processors (a type of logic chip)
        • Devices designed to perform intensive computer processing and system control.
        • Includes microprocessors (CPUs or MPUs) which comprise the largest share of market revenues.
      • Digital Logic
        • Devices designed to perform specialized digital processing within a system.
      • Memory
        • Devices designed to store electrical data, either temporarily or permanently
      • Discretes & Optoelectronics
        • Semi devices that consist of a single transistor in a package
  • Applications

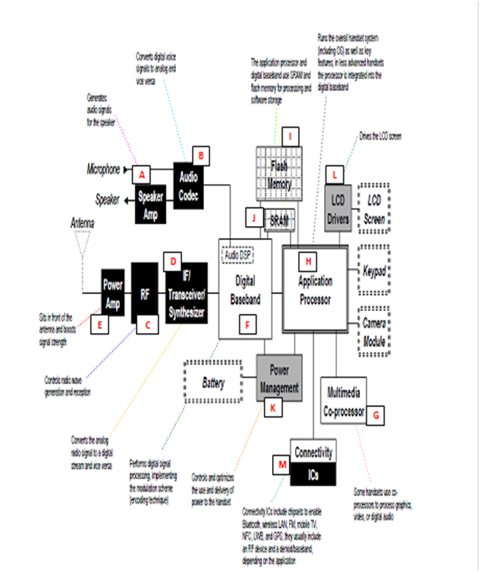

    • I am going to use a standard smart-phone to illustrate the different applications of the chips.
      • Please note this is a very narrow view of the range of potential applications for each chip. It is just meant to give you a GENERAL idea of chip applications

Only Semiconductor chips are labeled. I will describe the application of each trip segmented by the types of chips (Analog, System Processors, Digital Logic, Memory, and Hybrids)

Analog Chips (remember they drive or convert analog to digital and vice versa)

  1. Speaker Amplifier (NYSE:A)
    1. Drives the audio signals in the handset speak or headset
  2. Audio Codec (NYSE:B)
    1. Converts digital voice signals to analog and vice versa
  3. RF (Radio Frequency) (NYSE:C)
    1. Controls Radio Wave generation & reception
  4. IF/Transceiver/Synthesizer (NYSE:D)
    1. Controls the analog radio signal to a digital stream and vice versa
  5. Power Amplifier (NYSE:E)
    1. Sits in front of the antenna and boosts signal strength.

Digital Logic (remember they performed specialized processing within a system)

  1. Digital Baseband (NYSE:F)
    1. Performs digital signal processing
  2. Multimedia Processor (NYSE:G)
    1. Process graphics, video, or digital audio

System Processors (remember they perform intensive processing and system control)

  1. Application Processor (NYSE:H)
    1. Runs the overall handset system include the software

Memory (remember store electrical data, either temporarily or permanently)

  1. Flash Memory (NAND) (NYSE:I)
    1. Primary memory used to store phone numbers, software, and other user data.
  2. SRAM (J)
    1. Supports the application processor and digital baseband as they use some volatile memory for processing functions.

Hybrids (contain characteristics of both analog and digital chips)

  1. Power Management (NYSE:K)
    1. Controls the use and delivery of power to the handset
  2. LCD Drivers (NYSE:L)
    1. Generates the image on the LCD screen
  3. Connectivity ICs (NYSE:M)
    1. These ICs or chipsets are used in advanced phones to implement multimedia and connectivity functions.
      1. These features will usually be implemented with a chipset that ncludes digital processors plus an analog front end
    2. Includes Bluetooth, Wireless LAN, FM, mobile TV, Near Field Communicators, etc.

Manufacturing Strategies

  • Integrated Design & Manufacturing (IDMs)
    • e.g. Samsung
    • IDMs generally enjoy high margins in the boom part of the cycle as their fixed costs do not change, but suffer low margins in the trough of the cycle as capacity goes unused.
      • This effect should not be underestimated, as fixed costs (including depreciation and fixed material and labor costs) can run as high as 80% of semiconductor manufacturing costs.
  • Fabless (Only Design)
    • e.g. Qualcomm
    • The benefits of a fabless model include a lack of fixed costs, which generally translates into lower capital investment requirements, more consistent margins and better earnings predictability.
      • Fabless companies have the opportunity to gain share vs. IDMs in the downturn (since wafer costs for them will decline while unit costs for IDMs rise with declining output) and will generally lose share at the peak of the cycle (because of the opposite effect).
        • This effect can be neutralized if all direct competitors are fabless.
  • Manufacturers (Only Manuf.)
    • e.g. TSMC
    • The bottleneck in the supply chain is Manufacturers as such they have been capturing more of the value in the chain.
      • Revenue growth trends tell the story well: foundry revenue growth has outpaced semiconductor industry growth in four of the last seven years, and over that period has risen by 117% vs. the industry's 79%.

  • Company will only choose to manufacture itself if:

Industry Basics

  • Demand
    • driven by demand for electronics
      • Largest consumer of semi's are computing/data processing, communications, and consumer electronics.
    • Industry use to live & die by the PC cycle but now with the surge in mobile tech. demand should be less volatile
  • Supply
    • Driven primarily by wafer fab capacity (at least historically)
      • Characteristics include long construction and equipment installation cycles
        • Leads to shortages/overages
      • Wafer capacity moves very slowly in either direction and cap. ex can be volatile
    • Capacity utilization is key measure of supply
  • Economics
  • Moore's Law
    • States that the number of transistors on a chip doubles about every 2 years because they get smaller (increases transistor density on chip).
  • Smaller Transistor Means:
    • Faster Devices
      • Electrons move quicker
      • Cheaper Devices
        • More transistors per square inch
          • smaller die sizes
      • Lower Power Consumption
        • Less electricity needed
    • Larger wafer (during manufacturing process) means:
      • More die (chips) per wafer
        • Lower cost per die
      • Example
        • 300 mm (12 inch) wafer yields more than twice the die per wafer of a 200 MM equivalent
          • Measured in diameter
            • 50% increase in diameter(as above) yields more the 2.25x increase in usable wafer area
              • Remember that area of a circle is determined πr2

  • Fundamentals
    • Units
      • slightly less volatile than sales
    • ASPs
      • Volatile and add to the boom and exacerbate during the downturn
      • Individual Device average prices
        • Microprocessors are the most expensive by a wide margin.
    • Capital Spending
      • Important industry metric
        • Rough target is 25% of revenues
    • Gross margins generally in range of 40% & Op. Margins at ~15%
  • Markets
    • Historical Sales by Type
