Ivanhoe's Kamoa-Kakula Now Bigger Than Grasberg, But The Political Risks Weigh On The Share Price

Summary

• The Kamoa-Kakula resources have grown notably.
• Some new targets will be drilled in 2018.
• The new mining code is still the biggest problem.
• The short-term price development is questionable, due to the political situation.

This week, Ivanhoe Mines (OTCQX:IVPAF) announced the results of the updated resource estimate for its world-class Kamoa-Kakula deposit. The resource has increased significantly, which is not surprising as various drill results from the Kakula area reported in 2017 indicated that the update should be very positive. The Kamoa-Kakula project has successfully surpassed the Indonesian Grasberg mine operated by Freeport-McMoRan (FCX) and is officially the 4th largest copper deposit right now. As the deposit is still open in several directions, there is a good chance that it will climb even higher.

At a 1% cut-off grade, Kakula contains indicated resources of 37.7 billion lb, at a copper grade of 2.92% and inferred resources of 4.7 billion lb copper, at a 1.9% copper grade. At a 3% cut-off grade, it is 21.5 billion lb and 0.7 billion lb copper, at copper grades of 5.62% and 3.66% respectively. The exceptionality of the Kakula discovery is further underlined by the fact that even at an extremely high cut-off grade of 7%, the indicated resources contain 7.3 billion lb copper, at a copper grade of whopping 8.07%.

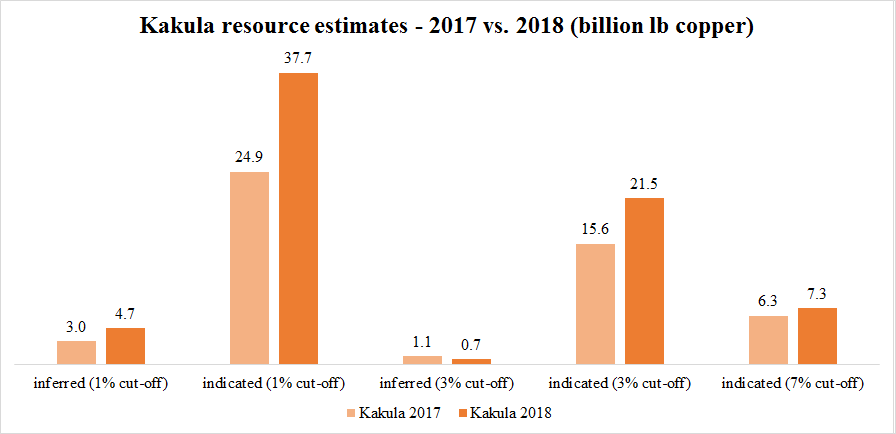

When comparing the May 2017 and February 2018 resource estimates (chart below), the total volume of contained copper has increased notably. At a 1% copper cut-off grade, Ivanhoe was able to add 12.8 billion lb copper of indicated and 1.7 billion lb copper of inferred resources. It means an increase of 51.4% and 56.7% respectively. The indicated resources experienced a respectable growth also at the 3% and 7% copper cut-off grades.

Source: own processing, using data of Ivanhoe Mines

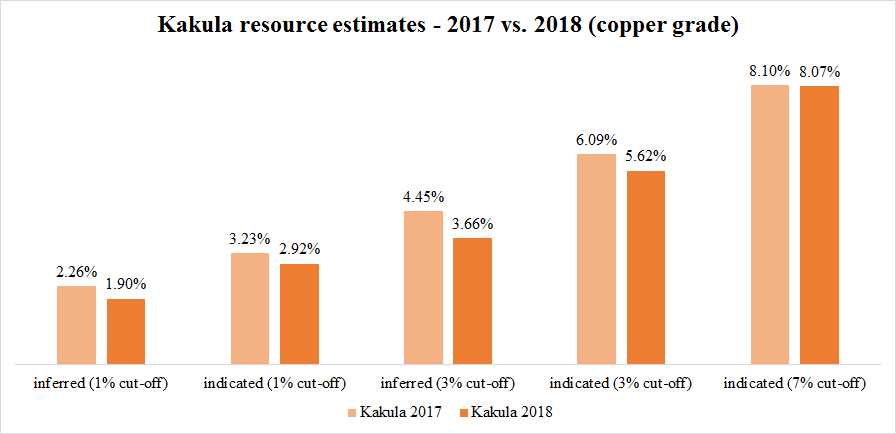

Although the resource grades have declined slightly (chart below), the decline was more than compensated by the resource growth. Moreover, the grades are still at very high levels. All of the other copper miners can only dream about 37.7 billion lb copper at a copper grade of 2.92%, and it all at a 1% cut-off grade.

Source: own processing, using data of Ivanhoe Mines

The resource update is definitely positive. Thanks to it, the total combined Kamoa-Kakula resources contain 80.7 billion lb copper indicated and 13 billion lb copper inferred, at a cut-off grade of 1%. The copper grades equal to 2.72% and 1.87% respectively. According to the Ivanhoe Mines:

The new, independently-verified resource estimate now places Kamoa-Kakula ahead of Indonesia’s renowned Grasberg Deposit as the world’s fourth-largest copper discovery on the planet in terms of contained copper. And it still is growing.

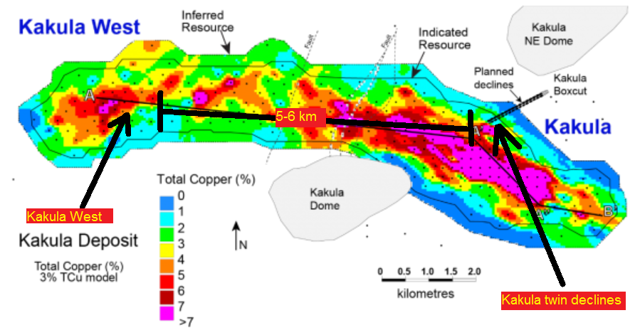

But we are still far from over. As shown in the map below, Kakula is still open along trend to the east and Kakula West is open to the west, south-west, and north-east. Also Kamoa is still open to the west, east, south-east and south. Moreover, Ivanhoe Mines has identified two new exploration targets, in a close proximity to the southern border of Kamoa and Kakula West.

Source: Ivanhoe Mines

Ivanhoe Mines has also announced that the construction of the Kakula twin declines is well underway. The first 200 meters have been already completed and the orebody should be reached in late 2018 or early 2019. The zone of initial mining should be 7.1-11.7 meters thick and it should contain ore with copper grades of 8.11-10.35%.

Also the following statement sounds very positive:

Now that a Mineral Resource estimate has been independently verified for the Kakula West Discovery, Ivanhoe and Zijin can explore options to accelerate future mine production by bringing high-grade mineralization from Kakula West into the Kakula mine plan.

Additional exploration success could have a significant influence on the size, value and timing of the overall development plan; as such, the Kamoa-Kakula development plans will be reassessed and amended as the project moves forward to reflect ongoing exploration results.

As the area where the Kakula twin declines will meet the targeted ore zone is some 5 or 6 kilometers far away from Kakula West (map below), there is only one way how to include Kakula West into the mine plan. To build some additional declines somewhere in the Kakula West area. It means that the Kamoa-Kakula project would technically contain three mines: the original twin declines at Kamoa, the twin declines that are being built at Kakula right now and the potential twin declines at Kakula West. This option was indicated also in the November 28 news release:

Ivanhoe is continuing to explore options to increase Kamoa-Kakula production to 18 Mtpa and beyond. In light of the successful step-out drilling at Kakula West, as well as the potential to find additional resources in high-priority targets located in the untested parts of the Kamoa-Kakula Project, development plans will be reassessed and amended as the project moves forward.

Source: Ivanhoe Mines

Although the development of Kamoa-Kakula progresses well, Ivanhoe's share price still suffers. The main issue is still the new Congolese mining code. The current status of the mining code is relatively unclear. The code should be signed by president Kabila to be enacted. However, although the signature hasn't been confirmed, it is possible that the code is already valid, as according to a recent Reuters article:

Under the constitution, the president has 15 days from the time parliament sends him the bill to either sign it into law or return it to parliament for further deliberation. If he takes no action, the bill automatically becomes law.

It is unclear what day the president received the bill from parliament but Mines Minister Martin Kabwelulu said at a conference on Feb. 7 that the code was “with the president”.

As 22 days have passed since February 7 and there was no news about president Kabila returning the mining code to the parliament, it should be valid now. On the other hand, based on the Ivanhoe's news release, it seems like the Congolese government is willing to negotiate with the miners. It would indicate that the new mining code hasn't been enacted yet:

Ivanhoe Mines recently has had constructive discussions in Kinshasa, the capital of the DRC, regarding the review of the DRC 2002 Mining Code. In conjunction with other international mining companies operating in the DRC, progress has been made toward understanding the key issues of concern to both the government and industry participants.

Ivanhoe Mines has received specific assurance that a detailed consultation process will commence in the near future with the goal of reaching a collaborative, sustainable, and stable long-term fiscal and regulatory framework that provides the foundation for the continued development of the mineral resources sector, and helps create a brighter future for all the citizens of the DRC. The organization of all major mining companies operating in the DRC, announced at the 2018 Cape Town Mining Indaba, will represent the industry during the upcoming consultation period.

According to a Bloomberg article from last Friday, president Kabila should meet with the representatives of Randgold Resources (GOLD), Glencore (OTCPK:GLCNF) (OTCPK:GLNCY), China Molybdenum (OTCPK:CMCLF) (OTC:CMCLY), Ivanhoe Mines, MMG (OTC:MMETY), Zijin Mining (OTCPK:ZIJMF) and AngloGold Ashanti (AU) to discuss the new mining code on Tuesday, March 6.

The investor's uncertainty is further supported by the civil unrests. Last Sunday, 4 people were killed, 47 wounded and 100 arrested, during a protest against president Kabila. It is very probable that further protests will take place over the rest of 2018, as the long-postponed presidential elections should take place on December 23. Although Ivanhoe's operations shouldn't be affected directly, any political instability may have a negative impact on its share price.

Conclusion

The Kamoa-Kakula project is a unique world-class copper play. There are huge amounts of very high-grade copper and the future mine is destined to dominate the global copper market for decades. The problem is, that the political situation in the Democratic Republic of Congo is very complicated and the new mining code further destabilizes the investment environment in the country. This is why Ivanhoe's share price is 27% down year-to-date. Regardless the exploration and development successes, further price decline is a real threat. This is why I closed my position when the share price dropped below the $2.6 level (as I indicated in my previous article). However, I'm still watching the situation closely and I intend to reestablish my position as soon as the situation starts to stabilize.

Editor's Note: This article discusses one or more securities that do not trade on a major U.S. exchange. Please be aware of the risks associated with these stocks.

Analyst’s Disclosure: I/we have no positions in any stocks mentioned, but may initiate a long position in IVPAF over the next 72 hours. I wrote this article myself, and it expresses my own opinions. I am not receiving compensation for it (other than from Seeking Alpha). I have no business relationship with any company whose stock is mentioned in this article.
