Lam Research Rises In Semiconductor Etch Sector On Heels Of 3D NAND Memory


  • The complexity of 3D NAND chip production was responsible for large revenue growth of processing equipment manufacturers in 2017 that will continue in to 2018.
  • In the plasma etch sector, Lam Research gained market share against its main competitor Japan's Tokyo Electron.

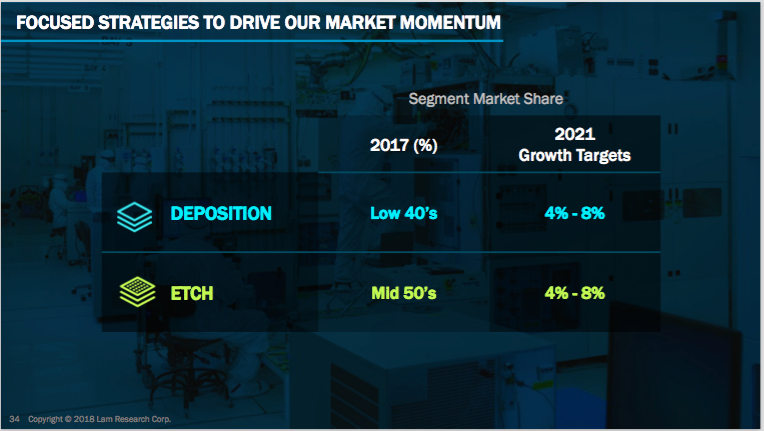

  • Lam Research's market share rose to the mid-50% range, and that share is expected to increase based on the company's technological achievements.

3D NAND Etch Background

Shown in Chart 1 is a schematic of a 3D NAND structure and the types of equipment used in creating the structure. 3D NAND scaling utilizes a combination of deposition and etch processes to define complex 3D structures with extremely high aspect ratio (HAR) features.

Chart 1

The HAR channel etch tool must drill tiny circular holes or channels from the top of the device stack to the bottom substrate. It is critical to achieving uniform hole size through multiple layers to define the channel of memory cells. More than a trillion holes must be etched simultaneously and uniformly on every wafer, each with an aspect ratio of 40:1 for 32- and 48-layer devices with 64 layers moving to 60:1. For comparison, the highest aspect ratio structure that's etched in planar 2D NAND is less than 15:1. The HAR etch is illustrated on the left side of Chart 1, using a dielectric etch process.

The staircase etch step, shown on the lower part of Chart 1, creates the individual contact pads for each memory cell within the layers. A highly controlled etch process is used to define the size of each contact pad. Repeated vertical etch and lateral trim etch processes are adopted to form the staircase.

Materials to create a stack of layers are customer dependent - Samsung (OTCPK:SSNLF) deposits alternating layers of silicon nitride and silicon dioxide on the substrate, while uses alternating layers of conductive polysilicon and insulating silicon dioxide. Thus, etch equipment needs to be versatile with process recipes to meet the needs of individual customers.

NAND Market

The market for semiconductor process equipment for 3D NAND production is huge. Below is a chart from Lam Research’s (NASDAQ:LRCX) 2018 Investor Presentation. My interpretation of this chart for WFE (wafer front end) is
